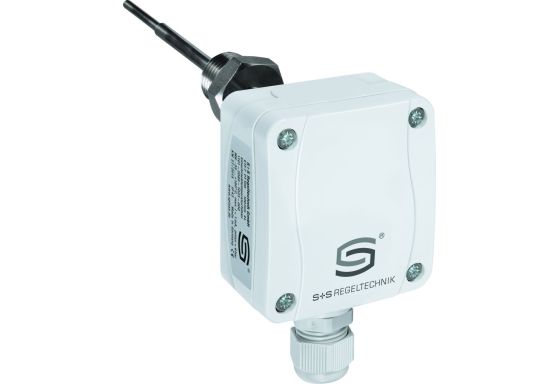

S+S Screw-in tempe­rature sensor / immersion tempe­rature sensor with neck tube (stepped once) - ETF7 Pt100 250mm

Introducing the S+S Screw-in Temperature Sensor - ETF7 Pt100 250mm

Discover the dynamic capabilities of the S+S Screw-in temperature sensor / immersion temperature sensor with neck tube (stepped once) - ETF7 Pt100 250mm from S+S Regeltechnik GmbH. This sensor is designed for swift response times, making it ideal for applications with rapid temperature changes, such as hydraulic systems.

Key Features and Benefits

Equipped with a Pt100 sensor complying with DIN EN 60751, Class B standards, the temperature range of -35 to +150 °C ensures reliable performance in various environments. The robust construction includes an UV-resistant plastic housing made of Polyamide with 30% glass bead reinforcement for enhanced durability.

The sensor boasts a simple stainless steel protective tube design, ensuring high mechanical strength and efficient temperature measurement. With an easy-to-install M16 x 1.5 cable gland and a G ½" threaded process connection, this sensor facilitates seamless integration into your system.

The ETF7 Pt100 250mm sensor comes with an IP65 protection rating and has been rigorously tested by TÜV SÜD, offering peace of mind regarding its performance and reliability. The compact design and quick-release screws provide added convenience during installation and maintenance.

Technical Specifications

• Quick response time for efficient temperature control
• Pt100 sensor with a wide temperature range for versatile applications
• Robust construction with UV-resistant Polyamide housing for durability
• Stainless steel protective tube for mechanical strength
• Easy installation with M16 x 1.5 cable gland and G ½" process connection
• IP65 protection rating for reliable operation in challenging environments
• TÜV SÜD tested for quality assurance
