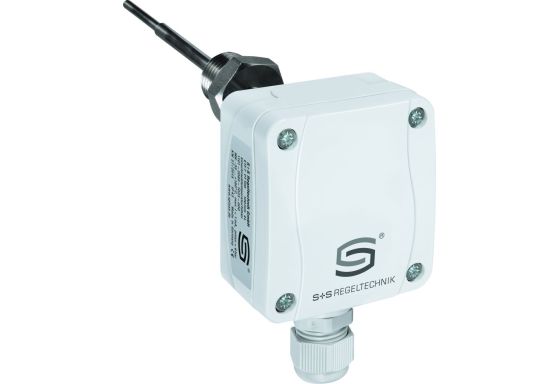

S+S Screw-in tempe­rature sensor / immersion tempe­rature sensor with neck tube (stepped once) - ETF7 Pt1000 150mm

Introducing the S+S Screw-in Temperature Sensor/Immersion Temperature Sensor with Neck Tube - ETF7 Pt1000 150mm

Discover the S+S Screw-in Temperature Sensor/Immersion Temperature Sensor with Neck Tube - ETF7 Pt1000 150mm, designed by renowned manufacturer S+S Regeltechnik GmbH. This sensor is known for its rapid response time and is ideal for applications with fast temperature or control processes, such as those found in hydraulic systems.

Key Features and Technical Specifications

• Sensor: Pt1000, DIN EN 60751, Class B
• Measurement Range: -35°C to +150°C
• Permissible Air Humidity: < 95% RH, non-condensing air
• Housing: UV-resistant plastic, Polyamide material, 30% glass bead reinforced, with quick-release screws
• Dimensions: 72 x 64 x 37.8 mm
• Insertion Length: 150mm
• Cable Gland: M 16 x 1.5, with strain relief, replaceable, max. inner diameter 10.4 mm
• Process Connection: Screw-in socket with G ½" thread
• Protective Tube: Stainless steel 1.4571, V4A, G ½", SW 27, pmax=6 bar, Ø=6 mm, stepped down to Ø=4 mm
• Neck Tube Length (NL) = 25mm
• Insertion Length (IL) = 100 - 250mm
• Protection Class: IP65 (per EN 60529), TÜV SÜD approved
• EAN: 4251325601496

Product Benefits

The S+S Screw-in Temperature Sensor/Immersion Temperature Sensor offers unmatched speed and reliability in monitoring temperature variations. Its sturdy construction, rapid response time, and compatibility with various systems make it a versatile choice for demanding applications.

Current Technical Data

For the most up-to-date technical information on the S+S Screw-in Temperature Sensor/Immersion Temperature Sensor - ETF7 Pt1000 150mm, please refer to official sources such as the manufacturer's website, datasheets, or authorized dealers.
