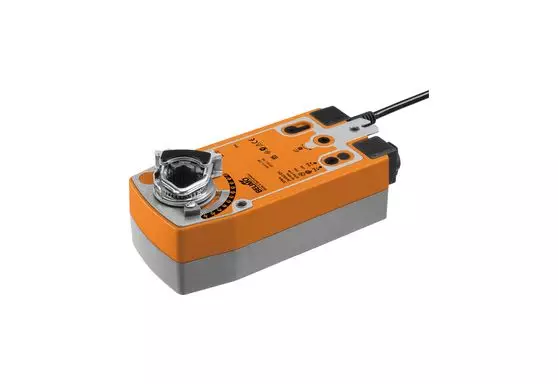

Belimo damper actuator - SF24A-MF - 24V, 20N

Configurable fail-safe damper actuator Torque motor 20 Nm Running time motor 150 s Torque fail-safe 20 Nm Running time fail-safe <20 s Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Power consumption in operation 8.5 W Power consumption in rest position 3.5 W Power consumption for wire sizing 11 VA Control modulating Electrical connection Cable 1 m, with plug Universal shaft clamp 10...25.4 mm Manual override by means of hand crank and locking switch Direction of motion selectable with switch L/R Protection class IEC/EN III, Safety Extra-Low Voltage (SELV) Manufacturer Belimo Type SF24A-MF
