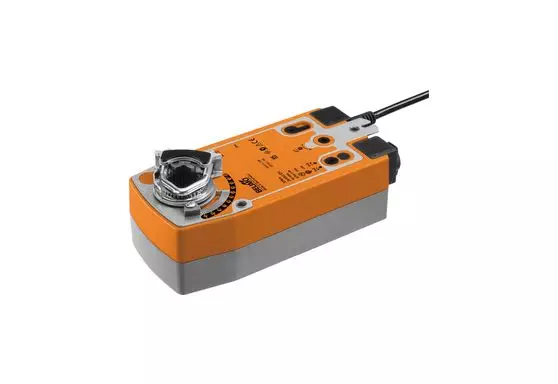

Belimo damper actuator - SF24A-MOD - 24V, 20N

Communicative fail-safe damper actuator Conversion of sensor signals Current reduction in rest position Constant, load-independent running time Adaptable setting range Mechanical angle of rotation limiter and position indication Torque motor 20 Nm Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Power consumption in operation 8.5 W Power consumption in rest position 3.5 W Power consumption for wire sizing 11 VA Control modulating, communicative, hybrid Communication BACnet MS/TP, Modbus RTU, MP-Bus Running time motor 150 s / 90° Running time fail-safe <20 s Direction of motion motor selectable with switch L/R Angle of rotation Max. 95° Manual override by means of hand crank and locking switch Mechanical interface Universal shaft clamp 10...25.4 mm Electrical connection Cable 1 m PVC Degree of protection IEC/EN IP54 Protection class IEC/EN III, Safety Extra-Low Voltage (SELV) Manufacturer Belimo Type SF24A-MOD
