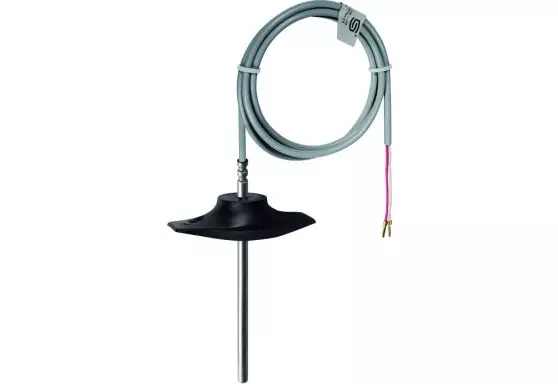

S+S Sleeve sensor / cable tem­perature sensor - HTF200 Pt100 Silikon 1,5M

Introducing the S+S Sleeve Sensor / Cable Temperature Sensor

Discover the versatile and reliable THERMASGARD® HTF Sleeve Sensor / Cable Temperature Sensor designed by S+S Regeltechnik GmbH. This sensor is specially crafted for precise temperature monitoring in both liquid and gaseous media applications. Its unique design allows for use as a channel sensor or as a submersion and screw-in sensor by mounting it into a sleeve.

Key Features and Benefits:

• Flexible sleeve length options ranging from 30 to 400 mm, with standard lengths at 50 mm and 200 mm.
• Customizable cable length, with a standard length of 1.5 meters.
• Available with Silikon, glass fiber, or PVC cable for various applications.
• Configurable as a two- or four-wire connection.
• Crafted with a durable Pt100 sensor according to DIN EN 60751, Class B standards.
• Wide temperature measuring range from -50°C to +180°C.
• Utilizes a high-quality stainless steel sensor protection.
• IP 65 protection rating for reliability in diverse environments.

Technical Specifications:

• Air Humidity: Up to 95% RH, non-condensing air.
• Fühlerkabel: Silikon, SiHF, 2 x 0.25 mm².
• Sensorkabel Length: 1.5 meters.
• Prozessanschluss: Compatible with Tauchhülsen THE or plastic mounting flange (optionally available in galvanized steel).
• Sensorschutz: Stainless steel 1.4571, V 4A, Ø = 6 mm, NL = 200 mm.
• Optional sleeve lengths are available from 30 to 400 mm.
• Kabeleinführung: Preformed cable entry for easy installation.
