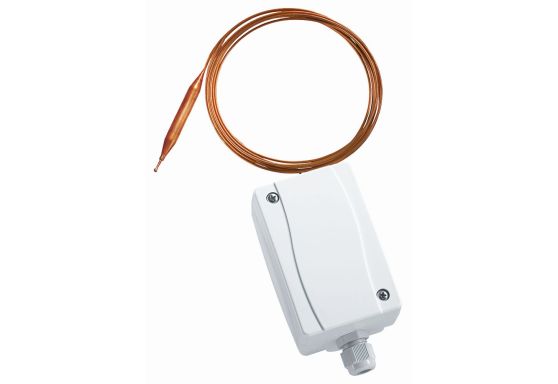

S+S Frost protection thermostat - FST-8D

S+S Frost Protection Thermostat - FST-8D

Introducing the innovative S+S Frost Protection Thermostat - FST-8D designed by S+S Regeltechnik GmbH. This mechanical frost protection thermostat, known as THERMASREG® FST, features a switching output, fully active sensing rod, automatic reset, or mechanical locking with manual reset. Available in various capillary lengths ranging from 0.6 m to 12 m, this thermostat ensures reliable frost protection for a range of applications.

Key Features and Advantages

• Suitable for temperature monitoring in air or water-side applications to prevent freezing and frost damage in heat exchangers, water circulation systems, and heating registers.
• Equipped with self-monitoring properties, ensuring safety with sensor breakage detection.
• The thermostat automatically switches to heating mode in case of Kapillarrohr-Membransystem damage, providing continuous protection.
• Versatile functionality, also suitable for monitoring liquids, with the option to install the sensor tube in a protective sleeve.
• Comes with mounting brackets MK-05-K for easy installation.

Technical Specifications

• Switching Capacity: 10 (2) A, AC 250 V; capable of switching signals < 24 V.
• Switching Differential: 2 ± 1 K (3.6 ± 1.8 °F).
• Housing: UV-resistant plastic made of 30% glass ball reinforced polyamide, with quick-release screws for easy access.
• Dimensions: 126 x 90 x 50 mm (Tyr 2).
• Function: Self-switching temperature monitor.
• Rod Length: 0.6 m.
• Capillary Tube Length: 0.6 m.
• Cable Gland: M 16 x 1.5 with strain relief.
• Process Connection: Mounting brackets MK-05-K included.
• Protection Class: IP 65 (according to EN 60 529).

Current Technical Data

For the most up-to-date technical information on the S+S Frost Protection Thermostat - FST-8D, we recommend consulting reputable sources such as the manufacturer's website, product data sheets, or authorized dealers.
