S+S Surface contact tempe­rature controller - ALTR-1

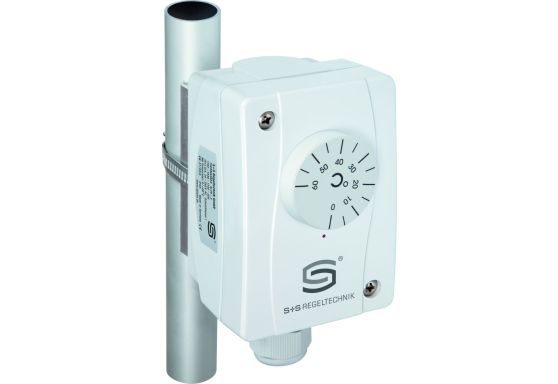

S+S Surface Contact Temperature Controller - ALTR-1 by S+S Regeltechnik GmbH

The S+S Surface Contact Temperature Controller - ALTR-1 is a mechanical temperature regulator and immersion thermostat designed by S+S Regeltechnik GmbH. This versatile device is ideal for monitoring, controlling, and limiting temperatures on pipelines, containers, such as in applications like hot water or underfloor heating systems.

Key Features

The ALTR immersion temperature controller is available as a single-stage device and can be configured as an adjustable temperature controller TR (with external adjustment) or as an adjustable temperature monitor TW (with internal adjustment). Key technical specifications include:

• Switching Differential: 5K (± 1K)
• Temperature Range: -35...+35 °C
• Housing: UV-resistant plastic, made of 30% glass bead reinforced Polyamide in Traffic White color (similar to RAL 9016)
• Dimensions: 108 x 70 x 73.5 mm
• Features: External Adjustment
• Function: Temperature Regulator
• Cable Gland: M 20 x 1.5 with strain relief
• Process Connection: Endless voltage in metal tension clamp (included in the package)
• Protection Class: IP65 (according to EN 60 529)
• EAN: 4251325608938

Technical Data

To find the most up-to-date technical data for the S+S Surface Contact Temperature Controller - ALTR-1, please refer to reputable sources such as the manufacturer's website, official data sheets, or authorized dealers. Ensure to ignore attributes that are unspecified or lack value to get accurate and reliable information.

With its robust construction and precise temperature control capabilities, the ALTR-1 offers reliable performance in various heating applications. Its user-friendly design and durable materials make it a cost-effective solution for temperature monitoring and regulation.
