S+S Surface contact tempe­rature controller - ALTR-060

S+S Surface Contact Temperature Controller - ALTR-060

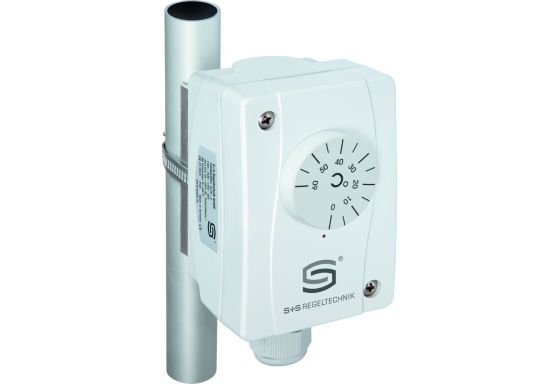

Discover the innovative S+S Surface Contact Temperature Controller, the ALTR-060 model, designed by S+S Regeltechnik GmbH for precise temperature control applications. This mechanical temperature regulator and surface thermostat THERMASREG® ALTR with a switching output (two-point controller) is the ideal solution for monitoring, regulating, and limiting temperatures on pipelines, containers, and more, such as in hot water or underfloor heating systems.

Key Features

• Switching Differential: 8K (± 1K)
• Temperature Range: 0...+60 °C
• Housing: ABS (Acrylonitrile Butadiene Styrene) reinforced with fiberglass
• Dimensions: 38 x 48 x 103 mm
• Equipment: External Adjustment
• Process Connection: Metal spring, 220 mm
• Protection Class: IP 40 (according to EN 60 529)

Product Details

The ALTR surface contact temperature controller is available as a single-stage device, an adjustable temperature controller TR (with external adjustment), or an adjustable temperature monitor TW (with internal adjustment). This versatile controller ensures reliable and accurate temperature management for various heating systems.

Advantages

• Precise Temperature Control: Ensures the desired temperature levels are maintained for efficient operation.
• Easy Adjustment: External adjustment feature allows for hassle-free customization according to requirements.
• Durable Construction: The ABS housing and zinc-coated steel base ensure longevity and robust performance.
• Easy Installation: Equipped with a process connection for seamless integration into different systems.

Technical Data

For the most up-to-date technical data for the S+S Surface Contact Temperature Controller ALTR-060, we recommend consulting reputable sources such as the manufacturer's official website or authorized dealers. Stay informed with the latest specifications to make informed decisions for your temperature control needs.
