S+S Tempe­rature con troller, one-step - TR-060-F U

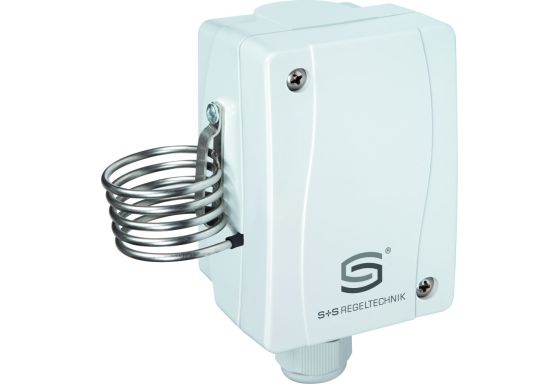

Meet the S+S Temperature Controller TR-060-FU by Hersteller

Discover the innovative S+S Temperature Controller TR-060-FU, a one-step solution from Hersteller, designed to elevate your temperature control needs. Perfect for various industries, this mechanical temperature regulator ensures precise monitoring and regulation of non-aggressive liquid or gas media.

Key Features and Benefits

Experience the following features and benefits that make the S+S Temperature Controller TR-060-FU stand out:

• Temperature Range: 0°C to +60°C
• Housing: UV-resistant plastic, made of Polyamide with 30% glass bead reinforcement
• Color: Traffic White (similar to RAL 9016)
• Housing Dimensions: 108 x 70 x 73.5 mm (Thor 2)
• Function: Interior temperature monitor
• Installation Length: In immersion sleeve EL = 150 mm
• Cable Gland: M 20 x 1.5 with strain relief
• Protection Class: IP 65 (as per EN 60 529)

Enhanced Controls and Applications

The S+S Temperature Controller TR-060-FU with a remote sensor and a single-stage switching output operates without external voltage, serving as a reliable capillary thermostat. It finds its applications in heating, ventilation, air conditioning systems, as well as in machinery and apparatus construction, ideal for installation in immersion sleeves or air ducts.
