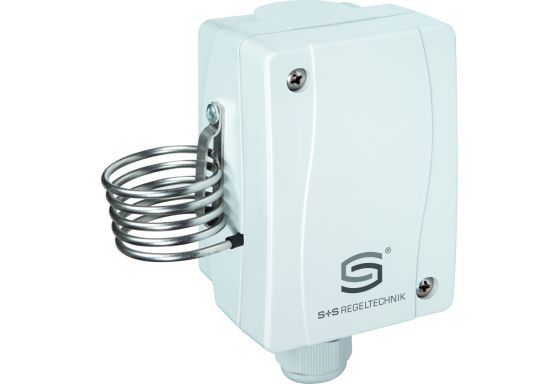

S+S Tempe­rature con troller, one-step - TR-50140-F U

Overview

The S+S Temperature Controller TR-50140-F U offers precise temperature control in a wide range of applications. Manufactured by S+S Regeltechnik GmbH, this mechanical temperature regulator is designed for reliability and efficiency.

Features and Benefits

- Versatile Applications: Suitable for monitoring and regulating the temperature of non-aggressive liquids or gases in heating, ventilation, air conditioning systems, as well as in machinery and equipment manufacturing. - Robust Construction: The controller features a UV-resistant plastic housing made of Polyamide with 30% glass bead reinforcement for durability. - Temperature Range: With a range of +50 to +140°C, the controller ensures accurate temperature management. - Compact Design: Measuring 108 x 70 x 73.5 mm, the compact size allows for easy installation in various settings. - Easy Installation: The controller can be easily integrated into immersion sleeves or air ducts for convenient setup. - Reliable Performance: The one-step switching output operates without external power supply, enhancing efficiency and functionality. - Enhanced Safety: IP65 protection rating according to EN 60 529 ensures reliable performance even in challenging environments. - EAN: 4251325609188

Technical Specifications

- Housing Material: UV-resistant Polyamide - Color: Traffic White (similar to RAL 9016) - Housing Dimensions: 108 x 70 x 73.5 mm - Total Length (in immersion sleeve): 150 mm - Cable Gland: M 20 x 1.5 with strain relief - Function: Temperature monitor (internal setting) - Temperature Range: +50 to +140°C

Additional Information

For current technical data and further details on the S+S Temperature Controller TR-50140-F U, please refer to official sources such as the manufacturer's website or authorized dealers. This temperature controller offers a reliable solution for temperature regulation in a variety of environments, ensuring precision and efficiency for your specific needs.
