S+S Tempe­rature con troller, one-step - TR-1-F

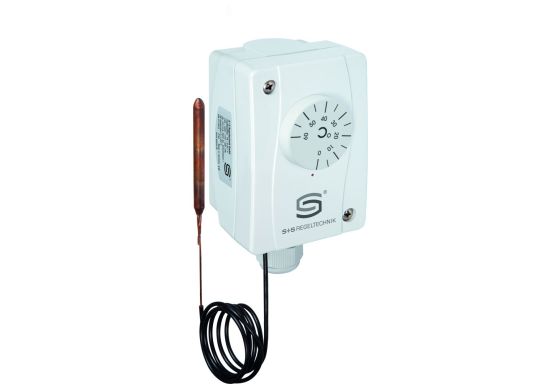

S+S Temperature Controller TR-1-F Description

Overview: The S+S Temperature Controller TR-1-F is a high-quality mechanical temperature regulator designed by S+S Regeltechnik GmbH to provide precise temperature control in various environments. Ideal for heating, ventilation, air conditioning systems, and machinery, this controller offers reliable performance and ease of use.

Key Features:

• Temperature Range: -35°C to +35°C
• Housing: Durable UV-resistant plastic, made of Polyamide material with 30% glass bead reinforcement
• Dimensions: 108 x 70 x 73.5 mm (Thor 2)
• Function: One-step temperature regulator with external adjustment
• Installation: Suitable for immersion in wells of length EL = 150 mm
• Cable Gland: M20 x 1.5 with strain relief
• Protection: IP 65 rated (according to EN 60 529)

Benefits:

The S+S Temperature Controller TR-1-F offers precise and reliable temperature monitoring or regulation for non-aggressive liquid or gas media. Its robust construction ensures durability and longevity, making it a dependable solution for a wide range of applications.

Technical Specifications:

• Manufacturer Part Number: 1102-1056-1110-100
• Description: Mechanical Temperature Regulator THERMASREG® TR xx - F with remote sensor, single-stage switching output

Final Thoughts:

The S+S Temperature Controller TR-1-F is an efficient and versatile solution for temperature control needs in various industries. With its compact design and high-performance capabilities, this controller offers a reliable and cost-effective solution for your temperature monitoring and regulation requirements.
