S+S Screw-in tempe­rature controller - ETR-090 U VA/100

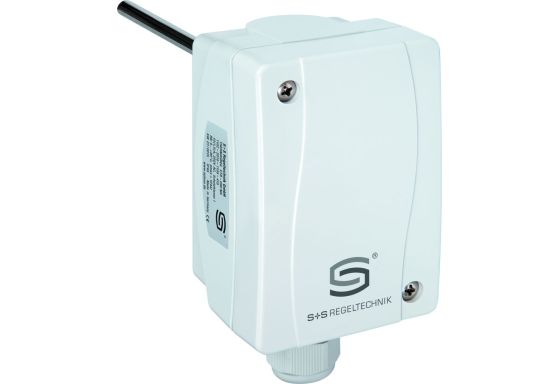

S+S Screw-in Temperature Controller - ETR-090 U VA/100

Discover the top-of-the-line S+S Screw-in Temperature Controller - ETR-090 U VA/100 from the renowned manufacturer. This DIN-tested, German quality product is EG type-examination certified (Module B) according to Directive 97/23/EC. It is designed to provide temperature control and limitation for heat generation systems, in compliance with DIN EN 14597 standards.

Key Features

• Switching Differential: 3K1
• Temperature Range: 0 to +90 °C
• High-Quality, UV-Resistant Plastic Casing
• Sturdy Polyamide Material, 30% glass sphere reinforced
• Compact Housing Size: 108 x 70 x 73.5 mm
• Integrated Temperature Monitoring Function

Technical Specifications

• Stainless Steel Immersion Sleeve: THR-VA-09/ xx
• Single Sleeve in Stainless Steel 1.4571, V4A
• Sleeve Diameter: 9 mm, G ½", SW 27
• Maximum Pressure: 25 bar, Maximum Temperature: +150 °C
• Installation Length: 100 mm
• Cable Gland: M 20 x 1.5 with Strain Relief
• Process Connection: Screw Thread
• Protection Rating: IP 65 (according to EN 60 529)
• EAN: 4251325616780

Advantages

The S+S Screw-in Temperature Controller - ETR-090 U VA/100 offers precise temperature regulation and monitoring for liquid or gas media in various applications such as heating systems, ventilation, air conditioning, and machinery construction. With its reliable performance and robust construction, this temperature control device ensures efficient operation and enhanced safety in heat generation facilities.

Customer Benefits

Customers can rely on the superior quality and functionality of this German-engineered temperature controller, providing peace of mind and optimal temperature management in diverse industrial settings. The device's user-friendly design and durable components guarantee long-term performance and cost-effective temperature control solutions.
