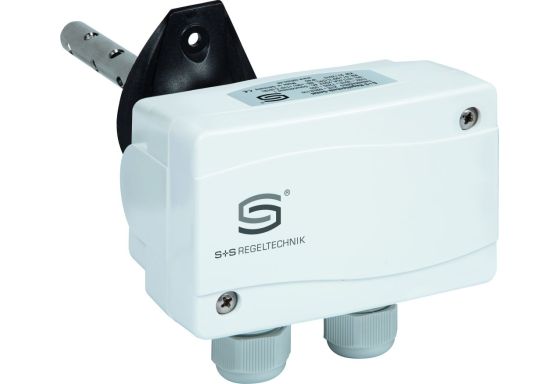

S+S Duct tempe­rature controller - KTR-090090 U

Introducing the S+S Duct Tempe­rature Controller - KTR-090090 U from S+S Regeltechnik GmbH

Experience precision temperature control with the S+S Duct Temperature Controller - KTR-090090 U, a premium product from renowned manufacturer S+S Regeltechnik GmbH. This German-engineered controller is DIN-certified and designed to meet the highest quality standards, making it a reliable choice for your heating systems.

Key Features

Temperature Range: 0°C to +90°C

Housing: UV-resistant polyamide with 30% glass bead reinforcement in a traffic white color (similar to RAL 9016)

Dimensions: 108 x 70 x 73.5 mm (Thor 2)

Function: Double-temperature monitor with internal setting

Installation Length: Approximately 205 mm (with flange); 184 mm (without flange)

Cable Gland: M20 x 1.5 with strain relief

Process Connection: Via mounting flange (included in the package)

Protective Tube: Made of copper-zinc alloy (CuZn37), Ø 14 mm, NL = 205 mm

Protection Rating: IP65 according to EN 60529

EAN: 4251325609713

Benefits for You

The S+S Duct Temperature Controller - KTR-090090 U offers precise temperature regulation and limiting capabilities, ensuring optimal performance of your heating systems. Its durable construction and advanced features make it ideal for various applications in heating, ventilation, climate control, machinery, and equipment manufacturing.

Technical Specifications

This temperature controller is designed to meet the stringent DIN standards and European directives, making it a trustworthy choice for your heating systems. With its reliable performance and versatile functionality, the S+S Duct Temperature Controller - KTR-090090 U provides peace of mind and efficient temperature control for your operations.
