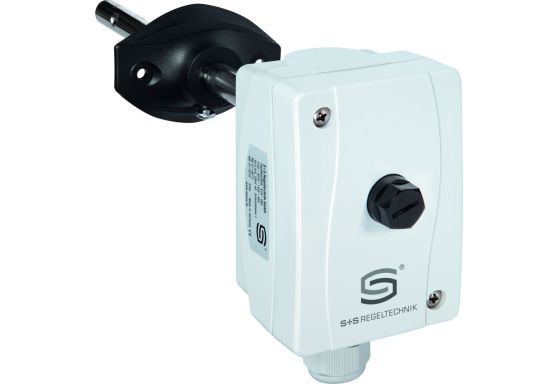

S+S Duct tempe­rature controller - KTR-090R110

Introducing the S+S Duct Temperature Controller - KTR-090R110 from Hersteller

Discover the innovative S+S Duct Temperature Controller - KTR-090R110, a cutting-edge solution designed by S+S Regeltechnik GmbH to elevate your temperature management needs. This DIN-certified German quality product sets new standards in temperature regulation and limiting devices for heat generation systems, meeting the stringent requirements of DIN EN 14597 and EU Directive 97/23/EC.

Key Product Features

Experience the superior performance of the Thermasreg® KTR mechanical temperature controller and rod thermostat with a switching output, engineered for precise temperature monitoring, regulation, and limitation of liquid or gaseous media in heating systems, HVAC, machinery, and heating plants. This versatile device is available in single- or two-stage configurations, serving as an adjustable temperature controller (TR), temperature monitor (TW), or safety temperature limiter (STB).

Product Specifications

• Temperature Range: +90 to +110 °C
• Housing: UV-resistant polyamide with 30% glass bead reinforcement, Traffic White color (similar to RAL 9016)
• Dimensions: 108 x 70 x 73.5 mm (Thor 2)
• Function: Temperature controller (external adjustment) + Safety temperature limiter
• Installation Length: Approximately 205 mm (with flange); around 184 mm (without flange)
• Cable Gland: M20 x 1.5 with strain relief
• Process Connection: via mounting flange (included in the package)
• Protective Tube: Made of Copper-Zinc alloy (CuZn37) with a diameter of 14 mm and a length of 205 mm
• Protection Class: IP65 (per EN 60 529)
• EAN: 4251325609751

Advantages for Customers

Invest in the reliability and precision of the S+S Duct Temperature Controller - KTR-090R110, benefiting from its robust construction, user-friendly design, and advanced temperature control features. Enjoy the peace of mind that comes from using a product validated by rigorous testing and certifications, ensuring safe and efficient operation in a wide range of applications.

Technical Data Analysis

For the latest technical specifications and data on the S+S Duct Temperature Controller - KTR-090R110, make sure to consult reputable sources such as the manufacturer's website, official datasheets, or authorized dealers. Stay informed about the product's performance metrics, capabilities, and compatibility with your specific requirements to make an informed purchasing decision.
