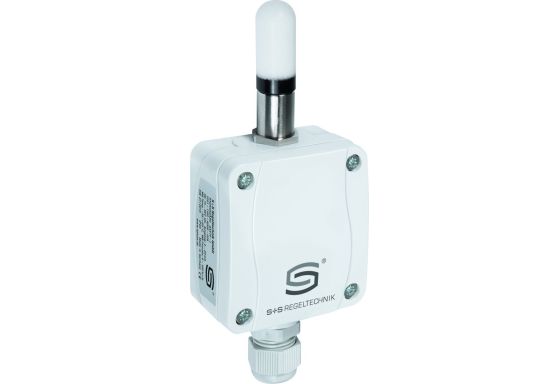

S+S On-wall / Outdoor Humidity Sensor for Mixture Ratio - AAVTF-I Overview

Welcome to the world of S+S On-wall / Outdoor Humidity Sensor for Mixture Ratio - AAVTF-I, designed to meet a variety of humidity measurement needs in a range of applications. Manufactured by S+S Regeltechnik GmbH, this sensor is a versatile choice for monitoring relative humidity and temperature in ambient air.

Key Features and Benefits

Flexibility in Output: The HYGRASGARD® AAVTF sensor offers 6 output options, providing the ability to calculate various humidity parameters internally.

Output Configurations: Choose between 0-10 V or 4-20 mA outputs, with the option to set parameters such as relative humidity, absolute humidity, mixture ratio, dew point temperature, or enthalpy per DIP switch.

Multiple Measurement Ranges: With selectable measurement ranges for both humidity and temperature, this sensor offers adaptability for different monitoring needs.

Wide Operating Range: The sensor is designed to operate between 10% and 95% relative humidity without condensation, allowing for reliable performance in diverse environments.

Sturdy Construction: The sensor features a UV-resistant polyamide housing with quick-release screws for easy installation, making it suitable for wall mounting.

Robust Design: Constructed with a stainless steel protection tube, the sensor is IP65-rated for protection against dust and water ingress.

Technical Specifications

Power Supply: 15-36 V DC, burden-dependent, with ± 0.3 V stabilized ripple

Sensors: Digital humidity sensor with integrated temperature sensor, offering high long-term stability with minimal hysteresis

Output: 4-20 mA for both humidity and temperature

Humidity Measurement Range: Multiple switchable ranges, defaulting to 0-100% RH

Temperature Measurement Range: Multiple switchable ranges, defaulting to 0-50 °C

Current Technical Data

For the most up-to-date technical specifications and details for the S+S On-wall / Outdoor Humidity Sensor for Mixture Ratio - AAVTF-I, please refer to reputable sources such as the manufacturer's website, official data sheets, or authorized dealers.
