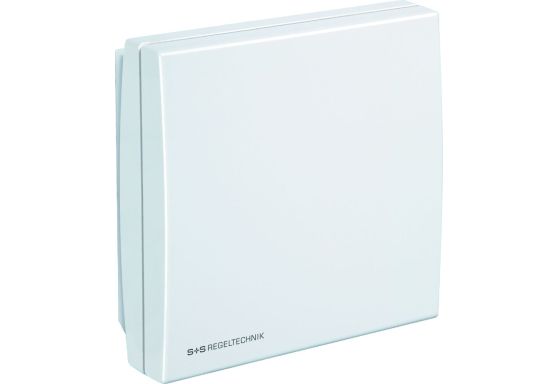

S+S Room Humidity and Temperature Sensor - RFTF-U LCD

Overview: The S+S Room humidity and temperature sensor - RFTF-U LCD from S+S Regeltechnik GmbH is a high-quality product designed for the HVAC sector, offering a precision of 3% RH.

Key Features:

• Calibratable sensor for measuring relative humidity and temperature
• Converts humidity and temperature measurements to 0-10 V or 4-20 mA standard signal
• Available with or without display options
• Constructed in a stylish plastic housing with snap-on cover
• Suitable for both vertical and horizontal installations on standard junction boxes
• Stainless steel casing available for vandal-resistant applications

Usage:

The sensor is ideal for non-aggressive, dust-free environments in HVAC systems, indoor spaces such as offices, hotels, and meeting rooms, as well as in cold rooms, clean rooms, and technical facilities.

Technical Specifications:

• Power Supply: 24 V AC (± 20%) and 15-36 V DC
• Digital humidity sensor with integrated temperature sensor
• Output Humidity: 0-10 V
• Output Temperature: 0-10 V
• Humidity Range: 0-100% RH
• Temperature Range: 0 to +50°C
• Accuracy: Humidity: ±2% (20-80% RH) at +25 °C; Temperature: ±0.2 K at +25 °C
• Housing: Plastic ABS material in Pure White (similar to RAL 9010)
• Dimensions: 85 x 85 x 27 mm (Baldur 1)
• Display: Backlit display for showing current temperature and humidity
• Mounting: Wall-mounted or on standard junction box Ø 55 mm
• Protection: IP 30 (according to EN 60 529)

Benefits:

• Precise and reliable measurement of temperature and humidity
• Easy calibration and user fine-tuning
• Robust construction for long-term use
• Versatile applications in various environments

Current Technical Data:

Please refer to the manufacturer's official website or datasheet for the most up-to-date technical specifications of the S+S Room humidity and temperature sensor - RFTF-U LCD.
