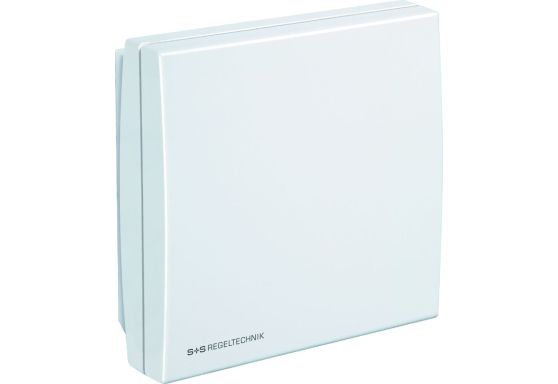

S+S Room humidity and tempe­rature sensor - RFTF-U NTC1,8K

Introducing the S+S Room Humidity and Temperature Sensor

The S+S Room humidity and temperature sensor - RFTF-U NTC1,8K from S+S Regeltechnik GmbH is a high-quality product designed for the HVAC sector. With a precision of 3% RH, this calibratable sensor is a reliable solution for monitoring relative humidity and temperature in a variety of environments.

Key Features and Benefits

Precise Measurement: The HYGRASGARD® RFF/RFTF sensor accurately measures relative humidity and temperature of the air, converting the readings into a standard signal of 0-10 V or 4-20 mA.

Versatile Options: Available with or without a display, the sensor can be installed in plastic housing for standard applications or stainless steel housing for vandal-resistant environments like schools and public buildings.

Wide Application: Ideal for HVAC, clean room technology, offices, hotels, and various indoor spaces, the sensor ensures precise monitoring of temperature and humidity levels.

Long-Term Stability: Equipped with a digital sensor element, the sensor offers high long-term stability for accurate and reliable measurements over time.

Technical Specifications

Power Supply: Works with 24 V AC (± 20%) and 15-36 V DC

Sensors: Digital humidity sensor with integrated temperature sensor, providing high long-term stability and small hysteresis

Output: Humidity range of 0-100% RH and temperature range of 0 to +50 °C, customizable outputs on request

Accuracy: Typical accuracy of ±2% for humidity and ±0.2 K for temperature

Working Environment: Operating range of 0-95% RH for humidity and 0 to +50 °C for temperature, suitable for non-aggressive, dust-free conditions

Mounting: Can be wall-mounted or installed on UP-Dose, offering flexible installation options

Protection: IP 30 rated for protection against solid objects and limited ingress of water

Current Technical Data

Please refer to reputable sources such as the manufacturer's website, data sheets, or official dealers for the most up-to-date technical specifications of the S+S Room humidity and temperature sensor - RFTF-U NTC1,8K.
