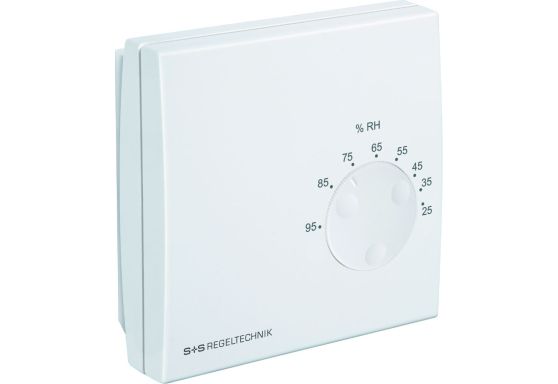

S+S Room hygrostat - RH-2

S+S Room Hygrostat - RH-2 by S+S Regeltechnik GmbH

Introducing the S+S Room Hygrostat - RH-2 by S+S Regeltechnik GmbH, the perfect solution for controlling, regulating, and monitoring relative humidity levels in various indoor environments. From offices and residential spaces to bathrooms, laboratories, switch cabinets, and IT rooms, the RH-2 hygrostat ensures optimal humidity levels for enhanced comfort and performance.

Key Features

• Designed with a mechanical design, the HYGRASREG® RH-2 features a switching output with a single-pole microswitch, functioning as a 2-point controller with a humidity sensor.
• Operates without external power supply, equipped with a humidity measuring element made of stabilized plastic fabric.
• Offers the option of setting switching points externally or internally using a setpoint adjuster.
• Comes in a sleek plastic housing with a snap-on cover and a base for 4-hole mounting for easy installation on vertically or horizontally installed recessed boxes.
• Includes a breaking point for surface mounting connection.

Technical Specifications

• Switching Differential: < 8% RH
• Housing Material: Plastic, ABS material
• Color: Pure white (similar to RAL 9010)
• Dimensions: 98 x 98 x 39 mm (Baldur 2, with potentiometer)
• Features: External adjustment, wall mounting or on recessed box, Ø 55 mm, base with 4-hole, for attachment on vertically or horizontally installed recessed boxes, for rear cable entry, with breaking point for cable entry at the top/bottom with AP
• Protection Class: IP 30 (according to EN 60529)

With its easy installation, precise control capabilities, and durable construction, the S+S Room Hygrostat - RH-2 is an ideal choice for maintaining optimal humidity levels in various indoor settings. Improve air quality, ensure comfort, and protect valuable equipment with this reliable hygrostat.
