S+S On-wall hygrostats - AHT-30W-U LCD

S+S On-wall Hygrostats - AHT-30W-U LCD

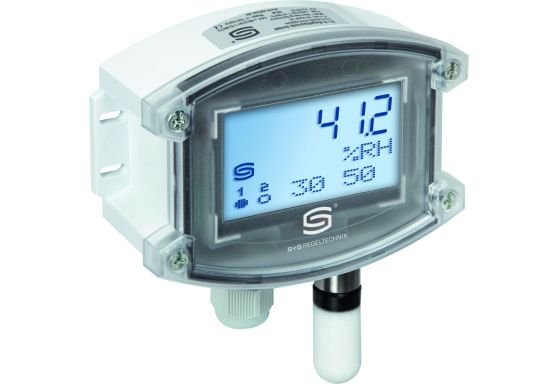

Discover the cutting-edge S+S On-wall Hygrostats - AHT-30W-U LCD from a renowned manufacturer, S+S Regeltechnik GmbH. This electronic surface-mount hygrostat and/or thermostat, the HYGRASREG® AHT-30, features continuous and two switching outputs, adjustable switching thresholds, and a display for real-time humidity and/or temperature readings (accuracy class ±2.0% RH). It allows for setting target values corresponding to relative humidity and/or temperature.

Features and Benefits

Designed for precise control and monitoring of relative humidity (dehumidification/humidification) and/or temperature (heating and cooling), the AHT-30 is ideal for applications in laboratories, production areas, climate chambers, swimming pools, greenhouses, and more. It efficiently handles the regulation of dehumidification devices, heating systems, and cooling systems with a digital, long-term stable sensor ensuring accurate humidity/temperature measurement in clean, non-polluted air.

Technical Specifications

Power Supply: 24 V AC/DC (±20%)
Sensor: Digital humidity sensor with integrated temperature sensor, small hysteresis, high long-term stability
Output: Potential-free changeover contact (2 x SPDT, 24 V, 1A resistive load, separately adjustable)
Switching Difference: Modes 1 & 3: adjustable (relative humidity or temperature), Modes 2 & 4: preset difference between the two switching points
Accuracy: Humidity: ±2.0% (20-80% RH) at +25°C, otherwise ±3.0%; Temperature: ±0.4 K at +25°C
Housing: UV-resistant polyamide with quick-release screws, traffic white (similar to RAL 9016) color, transparent display cover
Dimensions: 126 x 90 x 50 mm (Tyr 2)
Display: Backlit, three-line display with a cutout of approx. 70 x 40 mm (W x H), for real-time readings and setting target values
IP Protection: IP65 (as per EN 60529)
Additional Features: Internal adjustment, M 16 x 1.5 cable gland with strain relief, replaceable, maximum inner diameter 10.4 mm, stainless steel V2A (1.4301) protection tube with a diameter of 16 mm and a length of 55 mm
