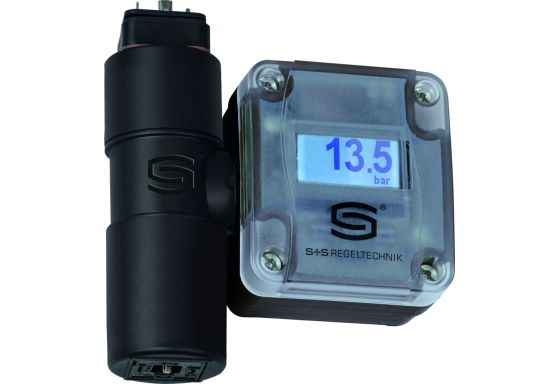

S+S Pressure measuring transducer - SHD-U 6

S+S Pressure Measuring Transducer - SHD-U 6

Introducing the S+S Pressure Measuring Transducer - SHD-U 6, a highly reliable and versatile instrument designed to accurately measure relative pressures in the bar range. This premium transducer by S+S Regeltechnik GmbH offers exceptional performance in converting the measured values into a standard signal of 0-10 V or 4-20 mA. Ideal for various applications in industries such as hydraulics, pneumatics, process technology, machinery, and plant engineering, this transducer is a standout choice for precise pressure measurement needs.

Key Features and Benefits:

• Accurately measures relative pressures in the bar range
• Converts measured values into a standard signal of 0-10 V or 4-20 mA
• Suitable for measuring pressures in both gaseous and liquid media
• Seamlessly integrates into applications in hydraulics, pneumatics, process technology, machinery, and plant engineering
• Durable construction with a seal-free pressure measuring cell
• Multiple mounting options including directly on the pressure line
• Robust housing made of stainless steel
• Convenient process connection of G ½"
• Operating voltage options for flexibility
• Weather-resistant with an IP 65 protection rating

Technical Specifications:

• Output Signal: 0-10 V or 4-20 mA
• Supply Voltage: 24 V AC/DC for 0-10 V output, 7-33 V DC for 4-20 mA output
• Measuring Range: 0-6 bar
• Pressure Range: 0-6 bar
• Housing Material: Stainless Steel, Grade 1.4305
• Mounting: Directly on the pressure line
• Dimensions: Approx. 98 x 50 x 34 mm (Plastic connection head)
• Protection Rating: IP 65 (according to EN 60529)

For accurate, reliable, and versatile pressure measurement, the S+S Pressure Measuring Transducer - SHD-U 6 is the ultimate solution for your industrial needs. Ensure precise pressure readings in a wide range of applications with this advanced transducer by S+S Regeltechnik GmbH.
