S+S Pressure measuring transducer - SHD-U 16

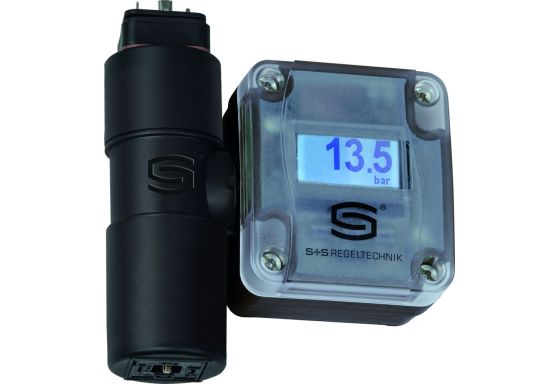

S+S Pressure Measuring Transducer - SHD-U 16 Overview

The S+S Pressure Measuring Transducer - SHD-U 16 from Hersteller is a high-quality device designed to measure relative pressures in the bar range. It converts the measured values into a standard signal of 0-10V or 4-20mA. With a G ½" process connection, this transmitter is suitable for measuring pressures in both gas and liquid media, making it perfect for applications in hydraulics, pneumatics, process engineering, and the machinery and plant construction.

Key Features

• Pressure Range: 0-16 bar
• Output Signal: 0-10V, 3-wire
• Power Supply: 24V AC/DC for 0-10V output, 7-33V DC for 4-20mA output
• Housing Material: Stainless Steel, Material 1.4305
• Process Connection: G ½"
• Mounting: Directly on the pressure line
• Protection Rating: IP65

Advantages for Customers

The S+S Pressure Measuring Transducer - SHD-U 16 offers precise and reliable pressure measurement in a variety of industrial applications. With its sturdy construction and IP65 protection rating, customers can trust its durability even in harsh environments. The flexibility in power supply options and the choice between two output signal types make it versatile for different use cases.

Technical Specifications

• Spanning supply: 24V AC/DC for 0-10V output, 7-33V DC for 4-20mA output
• Output Signal: 0-10V
• Operating Range: 0-16 bar
• Housing: Stainless Steel, Material 1.4305
• Process Connection: G ½"
• Protection Rating: IP65

Additional Information

It is important to note that the S+S Pressure Measuring Transducer - SHD-U 16 is not suitable for use with Ammonia and Freon. Customers should carefully consider the compatibility with the intended media before installation. For the most up-to-date technical data for this product, please refer to official sources such as the manufacturer's website or authorized dealers.
