S+S Pressure measuring transducer - SHD-I 10

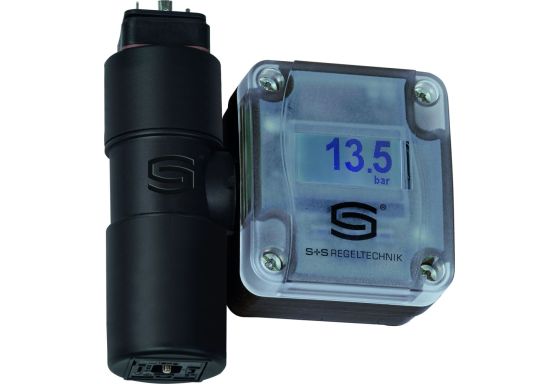

S+S Pressure Measuring Transducer - SHD-I 10 Overview

Discover the exceptional capabilities of the S+S Pressure Measuring Transducer - SHD-I 10 from Hersteller-Artikel-Nummer: 1301-2112-0560-120. This advanced device, manufactured by S+S Regeltechnik GmbH, is designed to accurately measure relative pressures in the bar range and convert them into standard signals of 0-10 V or 4-20 mA. Its G ½" process connection ensures seamless integration into various applications.

Key Features and Benefits

The SHD-I 10 Pressure Transducer is suitable for measuring pressures in both gaseous and liquid media, making it ideal for applications in hydraulics, pneumatics, process technology, as well as in machinery and plant construction. The pressure measuring cell is seamlessly welded to the pressure transmitter, ensuring a reliable and leak-free operation.

Noteworthy features of the SHD-I 10 include:

• Voltage Supply: 24 V AC/DC for 0-10 V output, 7-33 V DC for 4-20 mA output
• Output Signal: 4-20 mA, 2-wire system
• Pressure Range: 0-10 bar
• Housing: Stainless steel, material type 1.4305
• Process Connection: G ½"
• Mounting: Directly on the pressure line
• Protection Rating: IP 65

Technical Details

The SHD-I 10 Pressure Transducer provides precise and reliable measurements, ensuring optimal performance in various industrial environments. Its robust construction and high-quality materials guarantee long-term durability and accuracy.

Please note that the device is not suitable for use with Ammonia and Freon.

For the most up-to-date technical data on the SHD-I 10 Pressure Transducer, please refer to reputable sources such as the manufacturer's website, data sheets, or authorized dealers.
