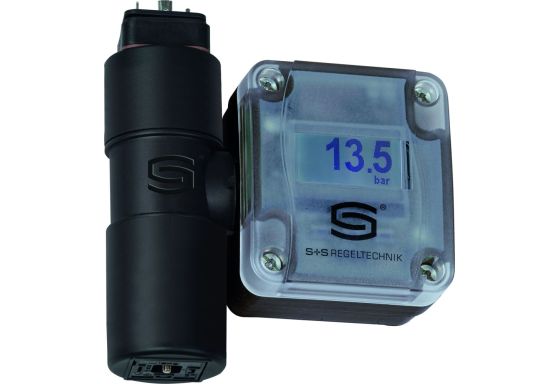

S+S Pressure measuring transducer - SHD-I 16

Introduction

The S+S Pressure measuring transducer - SHD-I 16 from S+S Regeltechnik GmbH is a reliable and high-quality instrument designed to measure relative pressures in the bar range. It efficiently converts the measured values into a standard signal of 0-10 V or 4-20 mA. This transducer is ideal for various applications in industries such as Hydraulics, Pneumatics, Process Engineering, as well as Machinery and Plant Construction.

Key Features

• Pressure range: 0-16 bar
• Output signals: 0-10 V or 4-20 mA
• Process connection: G ½"
• Material: Stainless steel, steel type 1.4305
• Mounting: Directly on the pressure line
• Protection rating: IP 65
• Voltage supply: 24 V AC/DC for 0-10 V output; 7-33 V DC for 4-20 mA output
• Compatible with gas and liquid media
• Not suitable for Ammonia and Freon

Advantages for Customers

Customers benefit from a dichtungsfrei design, where the pressure sensor is welded seamlessly. This ensures reliability and accuracy in pressure measurements. The transducer offers a wide pressure range, making it versatile for various industrial applications. Its robust construction with stainless steel housing and plastic connection head ensures durability and longevity in operation. Additionally, the easy mounting directly on the pressure line simplifies installation and maintenance processes.

Technical Specifications

• Pressure Range: 0-16 bar
• Output Signal: 0-10 V or 4-20 mA
• Process Connection: G ½"
• Material: Stainless steel, steel type 1.4305
• Mounting: Directly on Druckleitung
• Supply Voltage: 24 V AC/DC for 0-10 V output; 7-33 V DC for 4-20 mA output
• Protection Rating: IP 65

The S+S Pressure measuring transducer - SHD-I 16 is a reliable and efficient solution for measuring pressure in gas and liquid media. Its robust construction, wide pressure range, and compatibility with standard signals make it an ideal choice for various industrial applications.
