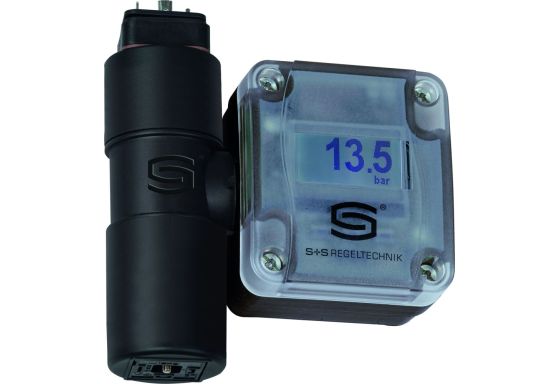

S+S Pressure measuring transducer - SHD-I 25

S+S Pressure Measuring Transducer - SHD-I 25 Overview

S+S Pressure measuring transducer - SHD-I 25 by Hersteller-Artikel-Nummer: 1301-2112-0580-120 is designed by S+S Regeltechnik GmbH to accurately measure relative pressures in the bar range. It converts the pressure measurement into a standard signal of 0-10 V or 4-20 mA for seamless integration into various systems. This transducer, with a G ½ " process connection, is ideal for measuring pressures in both gas and liquid media and finds applications in hydraulic, pneumatic, process technology, and machinery and plant construction industries.

Key Features and Benefits

- Wide Range of Application: Suitable for measuring pressures in both gas and liquid media, making it versatile for use in various industries including hydraulic, pneumatic, and machinery. - Reliable Measurement: The dichtungsfrei (seal-free) design ensures accurate and reliable pressure measurements. - Robust Construction: Constructed with a stainless steel housing and a plastic connecting head, providing durability and long-term performance. - Easy Installation: Directly mountable on the pressure line for convenient installation. - Industry-Grade Protection: IP 65 protection ensures the transducer is safeguarded against environmental factors.

Technical Specifications

- Voltage Supply: 24 V AC/DC for 0-10 V output, 7-33 V DC for 4-20 mA output. - Output Signal: 4-20 mA, 2-wire system. - Measurement Range: 0-25 bar. - Housing Material: Stainless steel (1.4305). - Process Connection: G ½ ". - Dimensions: Approximately 98 x 50 x 34 mm.

Additional Information

- Not suitable for Ammonia and Freon applications. - Product Code: 4251325612348.

Current Technical Data

Please refer to reputable sources such as the manufacturer's website or official dealers for the most updated technical information on the S+S Pressure measuring transducer - SHD-I 25.
