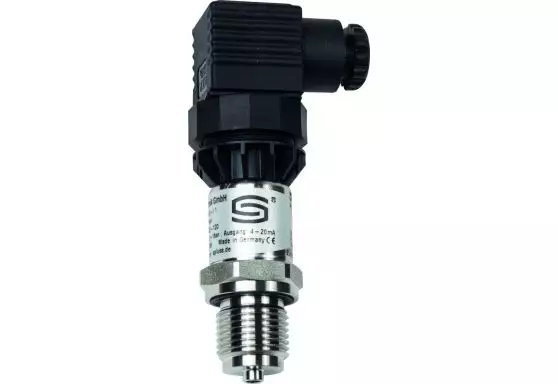

S+S Pressure Measuring Transducer - SHD-SD-U 6

Experience precise and reliable pressure measurement with the S+S SHD-SD-U 6 Pressure Measuring Transducer from S+S Regeltechnik GmbH.

Key Features

• Measures relative pressures in the bar range
• Converts measurement into a standard signal of 0-10 V or 4-20 mA
• Suitable for gas and liquid media pressure measurement
• Ideal for applications in hydraulics, pneumatics, process technology, and machine construction
• Sealed pressure cell welded to the pressure transducer for leak-free operation

Technical Specifications

• Power Supply: 24V AC/DC for 0-10 V output, 7-33V DC for 4-20 mA output
• Output: 0-10 V
• Signal Output: 0-10 V, 3-wire (Load > 10 kOhm), Depending on Load
• Pressure Range: 0-6 bar
• Pressure Range Type: Relative pressure, 0-6 bar
• Enclosure: Stainless steel, Steel type 1.4305
• Connection Head: Plastic, approx. 98 x 50 x 34 mm
• Mounting: Directly on pressure line
• Protection Rating: IP 65 (according to EN 60 529)

Additional Information

Note: Not suitable for use with Ammonia and Freon. The S+S Pressure Measuring Transducer - SHD-SD-U 6 provides accurate pressure measurements in both gaseous and liquid media, making it a versatile and essential tool in various industries. With its durable construction and reliable performance, this transducer ensures precise readings and seamless integration into your system.
