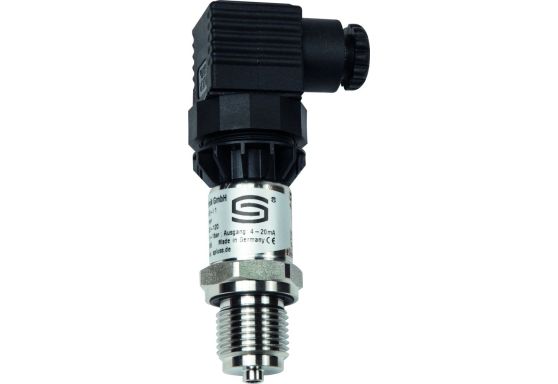

S+S Pressure Measuring Transducer - SHD-SD-U 10

The S+S Pressure Measuring Transducer - SHD-SD-U 10 from Hersteller offers precise measurement of relative pressures in the bar range. It is designed to convert the measured values into a standard signal of 0-10 V or 4-20 mA. The transducer features a G ½" process connection and is suitable for measuring pressures in gas and liquid media.

Key Features:

• Reliable measurement of pressures in gas and liquid media
• Suitable for applications in hydraulics, pneumatics, process technology, and machinery construction
• Sealed pressure measuring cell welded to the pressure transducer
• Output signals of 0-10 V or 4-20 mA
• Sturdy construction with stainless steel housing and plastic connection head
• Power supply options: 24 V AC/DC for 0-10 V output, 7-33 V DC for 4-20 mA output
• IP65 protection rating for reliable performance

Technical Specifications:

• Measurement Range: 0-10 bar
• Pressure Range: 0-10 bar
• Housing Material: Stainless Steel (Type 1.4305)
• Connection: G ½"
• Mounting: Directly on the pressure line
• Output Signal: 0-10 V, 3-wire, (Load > 10 kOhm)
• Protection Class: IP 65 (according to EN 60 529)

Application:

The S+S Pressure Measuring Transducer - SHD-SD-U 10 is ideal for use in various industries such as hydraulics, pneumatics, process technology, and machinery construction. However, it is not suitable for applications involving Ammonia and Freon products. Its robust design and accurate measurement capabilities make it a reliable choice for monitoring pressure levels in different media.
