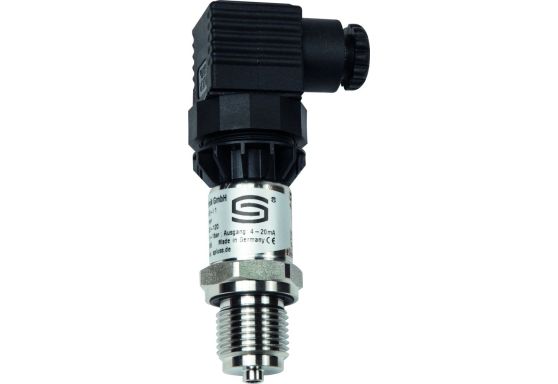

S+S Pressure measuring transducer - SHD-SD-U 16

Introducing the S+S Pressure Measuring Transducer - SHD-SD-U 16

Discover the innovative S+S Pressure Measuring Transducer - SHD-SD-U 16 from S+S Regeltechnik GmbH, designed for precise measurement of relative pressures in the bar range. This advanced transducer seamlessly converts the measured values into a standard signal of 0-10 V or 4-20 mA, making it an essential tool in various industries.

Key Features and Benefits

1. Versatile Applications: The SHD-SD-U 16 transducer is ideal for measuring pressures in both gaseous and liquid media, making it suitable for applications in hydraulics, pneumatics, process technology, and machine engineering.

2. Robust Construction: Crafted with a seal-free pressure cell welded to the pressure transmitter, ensuring durability and reliability in challenging environments.

3. Wide Operating Range: With a measurement range of 0-16 bar, this transducer provides accurate readings for a variety of pressure levels.

4. Easy Installation: The compact design allows for direct mounting on a pressure line, facilitating quick and convenient installation.

Technical Specifications

• Power Supply: 24 V AC/DC for 0-10 V output, 7-33 V DC for 4-20 mA output
• Output Signal: 0-10 V, 3-wire (load > 10 kOhm)
• Process Connection: G ½"
• Housing: Stainless steel, Steel type 1.4305
• Connection Head: Plastic, approx. 98 x 50 x 34 mm
• Protection Rating: IP 65
• EAN: 4251325612386

Ensure efficient and accurate pressure measurement with the S+S Pressure Measuring Transducer - SHD-SD-U 16. Its precision, reliability, and versatility make it a valuable asset in various industrial settings. Please note that this transducer is not suitable for use with ammonia and freon.
