S+S Pressure measuring transducer - SHD-SD-I 6

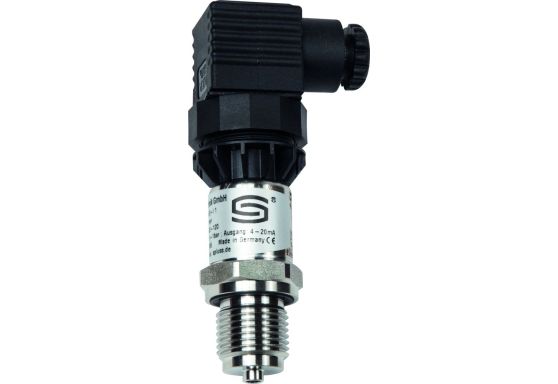

S+S Pressure Measuring Transducer - SHD-SD-I 6

Experience precise and reliable pressure measurement with the S+S Pressure Measuring Transducer - SHD-SD-I 6 from Hersteller. Designed for optimal performance and durability, this pressure transducer offers a range of innovative features to meet your measurement needs.

Key Features

• Measurement Range: 0 to 6 bar
• Output Signal: 4-20 mA
• Process Connection: G ½"
• Voltage Supply: 24 V AC/DC for 0-10 V output; 7-33 V DC for 4-20 mA output
• Material: Stainless steel housing with plastic connection head
• Mounting: Directly on the pressure line
• Protection Rating: IP 65
• Not suitable for Ammonia and Freon

Applications

The SHD-SD-I 6 transducer is specifically designed for measuring pressures in gas and liquid media, making it ideal for use in hydraulic systems, pneumatic applications, process technology, as well as machinery and plant engineering.

Advantages

• Precisely measures pressure in the bar range
• Converts measurement into a standard signal of 0-10 V or 4-20 mA
• Durable and seal-free pressure sensing cell
• Versatile application across various industries

Technical Specifications

• Hersteller-Artikel-Nummer: 1301-2122-0550-000
• Manufacturer: S+S Regeltechnik GmbH
• Measuring Range: 0-6 bar
• Enclosure: Stainless steel, Steel type 1.4305
• Dimensions: Approximately 98 x 50 x 34 mm
• Signal Output: 4-20 mA, 2-wire system
• Burden: < (Supply Voltage (V) - 7 V) / 0.02 A
• Protection Rating: IP 65 (according to EN 60 529)
• EAN: 4251325612393
