S+S Pressure measuring transducer - SHD-SD-I 16

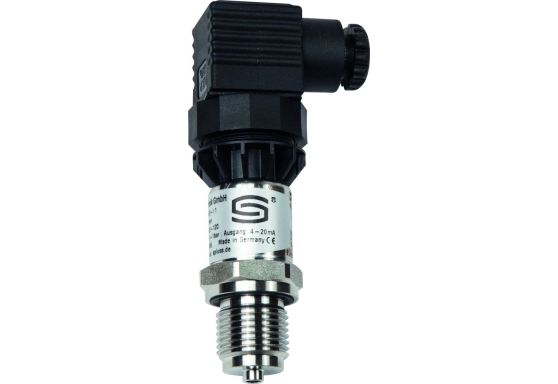

Introducing the S+S Pressure Measuring Transducer SHD-SD-I 16

Discover the innovative S+S Pressure Measuring Transducer SHD-SD-I 16 from S+S Regeltechnik GmbH. This high-quality product is designed to measure relative pressures in the bar range, converting the measured values into a standard signal of 0-10 V or 4-20 mA. With a process connection of G ½", this transducer is a versatile tool suitable for various applications.

Key Features and Benefits

The S+S Pressure Measuring Transducer SHD-SD-I 16 is ideal for measuring pressures in both gaseous and liquid media. Its seamless integration in hydraulic, pneumatic, process technology, and mechanical engineering applications make it a valuable asset for your operations.

Technical Specifications

• Voltage Supply: 24 V AC/DC for 0-10 V output, 7-33 V DC for 4-20 mA output
• Output: 4-20 mA
• Pressure Range: 0-16 bar
• Housing: Stainless steel, Steel type 1.4305
• Connection Head: Plastic, approximately 98 x 50 x 34 mm
• Mounting: Directly on the pressure line
• Protection Class: IP 65
• EAN: 4251325612416

Important Note

Please be aware that this pressure transducer is not suitable for use with Ammonia or Freon.

Technical Data

For the most current technical data for the S+S Pressure Measuring Transducer SHD-SD-I 16, kindly refer to reputable sources such as the manufacturer's website, official data sheets, or authorized dealers.
