S+S differential pressure transducer - SHD 692-U-900

S+S Differential Pressure Transducer - SHD 692-U-900 Overview

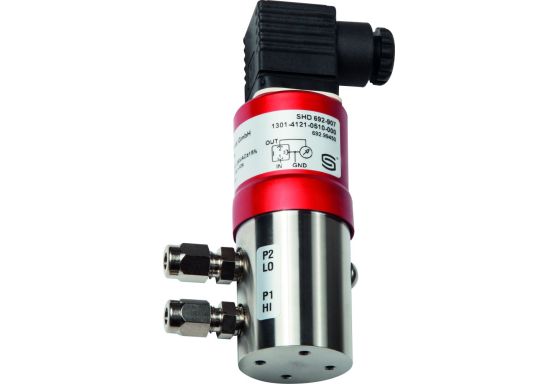

The S+S Differential Pressure Transducer - SHD 692-U-900 is a reliable and versatile device designed by S+S Regeltechnik GmbH for measuring pressures in both gas and liquid media. This transducer efficiently converts the pressure measurement into a standard signal of 0-10 V or 4-20 mA. It is equipped with a process connection of 2 x G ⅛" - 27 NPT internal threads, making it suitable for a wide range of applications in pipelines, hydraulic systems, machinery, plant construction, and building automation.

Technical Specifications

Power Supply: 24 V AC (+15%/-10%)

Output Signal: 0-10 V, 3-wire connection

Pressure Range: 0-0.1 bar

Pressure Type: Gauge Pressure

Housing Material: Stainless Steel, Steel type 1.4305

Connection Head: Angular Plug, DIN EN 175301-803-A

Mounting: Any orientation

Protection Rating: IP65 (according to EN 60529) with mounted socket

Advantages and Benefits

The SHD 692-U-900 transducer offers precise pressure measurement capabilities in various environments, ensuring accurate and reliable results. Its durable construction using high-quality stainless steel guarantees longevity and resistance to corrosion. The device's flexibility in mounting allows for easy installation in different settings.

Current Technical Data

Please refer to reputable sources such as the manufacturer's website or official dealers for the latest technical specifications of the S+S Differential Pressure Transducer - SHD 692-U-900.
