S+S differential pressure transducer - SHD 692-U-907

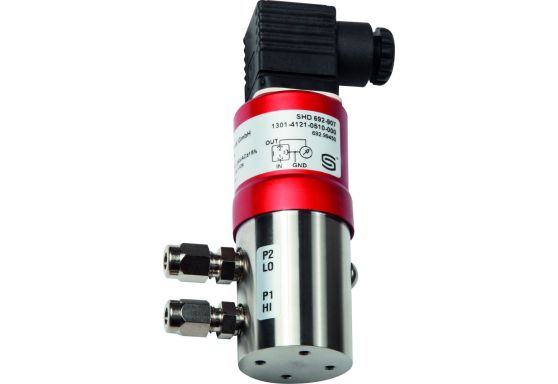

S+S Differential Pressure Transducer - SHD 692-U-907

Discover the cutting-edge technology of the S+S Differential Pressure Transducer - SHD 692-U-907, a top-tier solution for precision pressure measurement in both gas and liquid mediums. This state-of-the-art transducer from S+S Regeltechnik GmbH is designed for unparalleled accuracy and reliability in diverse applications.

Key Features and Benefits

• Highly precise measurement with a converting range of 0-10 V or 4-20 mA
• Robust construction with stainless steel housing, ideal for various environments
• Wide application range in pipelines, hydraulic systems, machinery, and building automation
• Convenient 2 x G ⅛ " - 27 NPT internal thread process connection
• Operating voltage of 24 V AC with a range of 18-33 V DC for versatile power options
• Easy installation with flexible mounting options
• IP 65 protection ensuring reliability in challenging conditions

Technical Specifications

• Supply Voltage: 24 V AC (+15% / -10%)
• Output Signal: 0-10 V, 3-wire connection
• Pressure Range: 0-0.5 bar
• Material: Stainless Steel, Steel Type 1.4305
• Connection Type: Angled plug, DIN EN 175301-803-A
• Protection Class: IP 65 in accordance with EN 60 529

Important Note

Please note that the S+S Differential Pressure Transducer - SHD 692-U-907 is not suitable for use with Ammonia and Freon.

Get your hands on this top-notch differential pressure transducer today and experience unparalleled accuracy and reliability in your pressure measurement applications.
