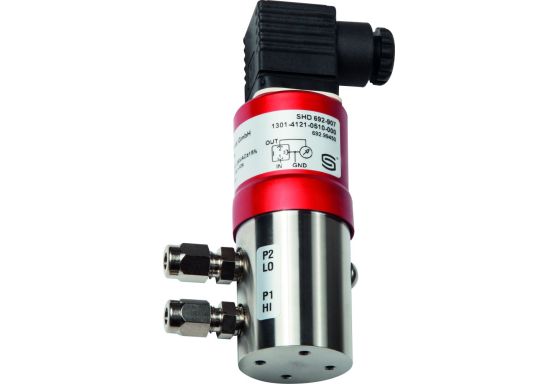

S+S Differential Pressure Transducer - SHD 692-U-912

Discover the innovative S+S Differential Pressure Transducer - SHD 692-U-912 designed and crafted by S+S Regeltechnik GmbH. This state-of-the-art pressure sensor offers unparalleled precision and reliability for measuring pressures in both gas and liquid media.

Key Features and Benefits

• Converts measurement into a standard signal of 0-10 V or 4-20 mA for easy integration
• Process connection with 2 x G ⅛" - 27 NPT internal threads for seamless installation
• Perfect for applications in pipelines, hydraulic systems, machinery, plant engineering, and building automation
• Not suitable for use with Ammonia and Freon

Technical Specifications

• Voltage Supply: 24 V AC (+15% / -10%)
• Output Signal: 0-10 V, 3-wire connection
• Pressure Range: 0-1 bar
• Pressure Type: 0-1 bar
• Housing: Stainless Steel, Steel Type 1.4305
• Connection Head: Angled Connector, DIN EN 175301-803-A
• Mounting: Any desired installation position
• Protection Rating: IP 65 (according to EN 60529) with mounted socket

Additional Information

• EAN: 4251325612447
