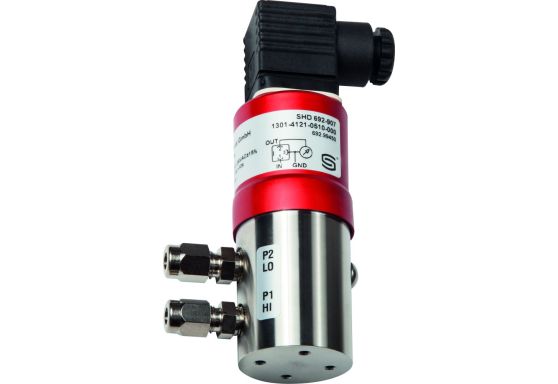

S+S differential pressure transducer - SHD 692-I-900

Overview

The S+S SHD 692-I-900 differential pressure transducer is a versatile device designed for measuring pressures in both gas and liquid media. With the ability to convert the measured values into a standard signal of 0-10 V or 4-20 mA, this transducer is suitable for various industrial applications. Featuring a process connection of 2 x G ⅛" - 27 NPT internal threads, it is commonly used in pipelines, hydraulic systems, machinery, and building automation projects.

Key Features

• Power Supply: 24 V DC
• Output Signal: 4-20 mA
• Measurement Range: 0-0.1 bar
• Material: Stainless Steel, Steel Type 1.4305
• Protection Level: IP 65

Technical Specifications

• Process Connection: 2 x G ⅛" - 27 NPT internal threads
• Operating Voltage: 24 V DC (± 20 %)
• Output Signal: 4-20 mA
• Measurement Range: 0-0.1 bar
• Housing Material: Stainless Steel, Steel Type 1.4305
• Connection Head: Angular connector, DIN EN 175301- 803 - A
• Mounting: Any orientation
• Protection Class: IP 65 (according to EN 60 529) with mounted socket
