S+S differential pressure transducer - SHD 692-I-912

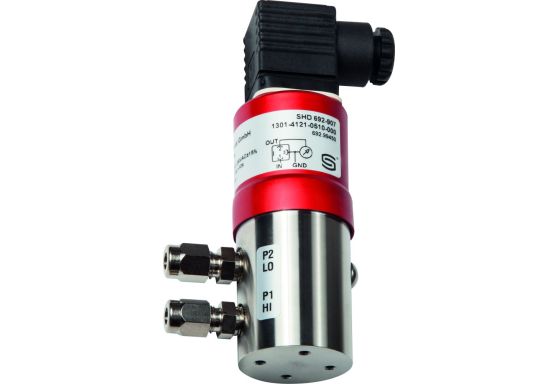

S+S Differential Pressure Transducer - SHD 692-I-912 Overview

The S+S Differential Pressure Transducer - SHD 692-I-912 from Hersteller provides precise pressure measurement capabilities in both gas and liquid media. This innovative device converts the measured values into a standard signal of 0-10 V or 4-20 mA. With a process connection of 2 x G ⅛" - 27 NPT internal threads, the SHD-692 is suitable for use in pipelines, hydraulic systems, machinery, plant construction, and building automation applications.

Technical Specifications

Voltage Supply: 24 V DC (± 20%)

Output Signal: 4-20 mA, 2-wire connection

Pressure Range: 0-1 bar

Pressure Measurement Range: 0-1 bar

Housing: Stainless steel, steel type 1.4305

Connection Head: Angled plug, DIN EN 175301-803-A

Mounting: Any direction installation

Protection Class: IP 65 (according to EN 60 529) with mounted socket

Key Features & Benefits

The S+S SHD-692 Transducer offers a range of advantages, including:

• Precise measurement of pressure in gas and liquid media
• Conversion of measured values into standard output signals for easy interpretation
• Wide application range in various industries such as mechanical engineering, plant construction, and building automation
• Robust stainless steel housing for durability and longevity
• Secure protection class of IP 65 for reliable operation in different environments

Ensure the safety and efficiency of your systems with the reliable performance of the SHD-692 transducer.
