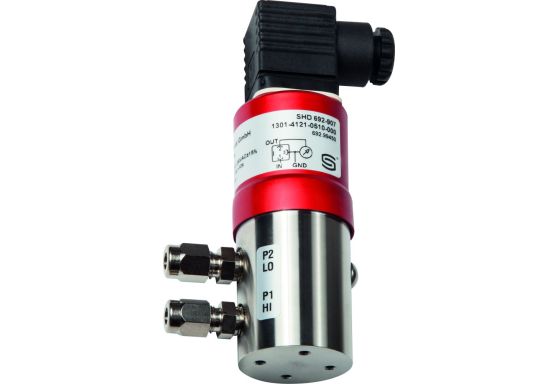

S+S differential pressure transducer - SHD 692-I-916

Introducing the S+S Differential Pressure Transducer - SHD 692-I-916

Experience precise pressure measurements with the innovative S+S Differential Pressure Transducer - SHD 692-I-916, an essential component designed by S+S Regeltechnik GmbH for various applications in gas and liquid media. This state-of-the-art transducer effectively converts pressure values into standardized 0-10 V or 4-20 mA signals, ensuring accurate monitoring in diverse industrial settings.

Key Features:

• Versatile Application: With a pressure range from 0 to 2.5 bar, the SHD-692 is ideal for use in pipelines, hydraulic systems, machinery, plant construction, and building automation.
• Robust Construction: Crafted from high-quality stainless steel (type 1.4305) housing and featuring a Winkelstecker connection head, this transducer guarantees durability and reliability in demanding environments.
• Easy Installation: The transducer offers flexible mounting options and a 2 x G ⅛" - 27 NPT internal thread process connection for convenient setup and integration.
• Safe Operation: With an IP 65 protection rating, the SHD-692 ensures secure operation in accordance with EN 60 529 standards, providing peace of mind in challenging conditions.

Technical Specifications:

• Power Supply: 24 V DC (± 20%)
• Output Signal: 4-20 mA, 2-wire connection
• Measurement Range: 0-2.5 bar
• Not Suitable for: Ammonia and Freon

Advantages and Benefits:

By investing in the S+S Differential Pressure Transducer - SHD 692-I-916, customers gain access to a reliable and accurate pressure monitoring solution that enhances efficiency, ensures system integrity, and increases safety. With its robust design, versatile application range, and easy installation features, this transducer provides a cost-effective and sustainable solution for diverse industry requirements.
