S+S differential pressure transducer - SHD 692-I-918

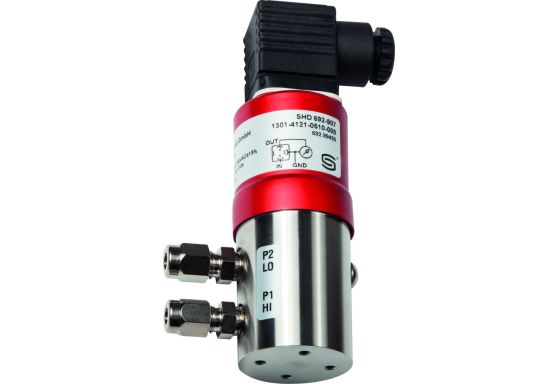

Introducing the S+S Differential Pressure Transducer - SHD 692-I-918

Discover the innovative S+S Differential Pressure Transducer - SHD 692-I-918 from a leading manufacturer in the industry. This cutting-edge product boasts top-notch features and functionalities designed to meet your varied pressure measurement needs.

Key Features and Benefits

• Precise Measurement: The SHD-692 facilitates accurate pressure measurement in both gaseous and liquid media, ensuring reliable data output.
• Signal Conversion: It efficiently converts the measured values into a standard signal of 0-10 V or 4-20 mA for seamless integration with existing systems.
• Versatile Application: Ideal for use in pipelines, hydraulic systems, machinery, plant construction, and building automation, offering versatile functionality across multiple industries.
• Durable Construction: The housing is crafted from high-quality stainless steel (material type 1.4305), ensuring robustness and longevity in various environments.
• Easy Installation: With a 2 x G ⅛" - 27 NPT internal thread process connection and DIN EN 175301-803-A angled plug connector, installation is convenient and hassle-free.
• IP 65 Protection: The transducer features IP 65 protection according to EN 60 529 standards when equipped with the mounted socket, ensuring reliability in challenging conditions.

Technical Specifications

• Power Supply: 24 V DC (± 20%)
• Output Signal: 4-20 mA, 2-wire connection
• Pressure Range: 0-4 bar
• Pressure Type: Differential pressure
• Mounting: Any orientation
• Not Suitable for: Ammonia and Freon
