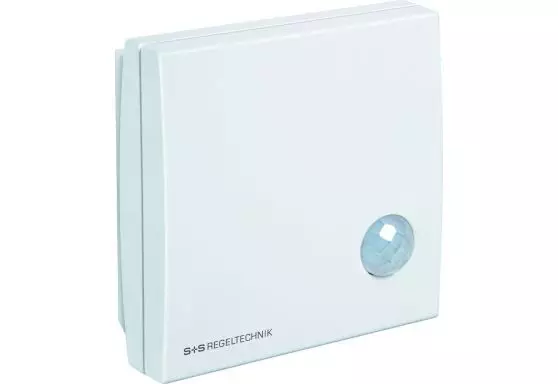

S+S Room motion sensor - RBWF-W

S+S Room Motion Sensor - RBWF-W

Enhance your space with the state-of-the-art S+S Room Motion Sensor - RBWF-W from S+S Regeltechnik GmbH. This innovative sensor guarantees efficient detection of human presence and movement, equipped with a switch contact output. It features a wide 110° and 360° angle of detection, enabled by a patented lens system comprising 20 individual lenses that minimize dark areas and ensure accurate motion detection even from a distance of 10 meters.

Key Features

• Voltage Supply: 24 V AC (± 20%) and 15…36 V DC
• Sensor Type: Infrared Motion Sensor
• Output: Without/With Motion + Presence, potential-free changeover contact (24 V), 1 A resistive load
• Housing Material: ABS Plastic, Pure White Color
• Dimensions: 85 x 85 x 27 mm
• Mounting: Wall Mounting or on UP-Box, Ø 55 mm, 4-hole base, for vertical or horizontal UP-Boxes
• Protection Rating: IP 30 (according to EN 60 529)

Advantages

The S+S Room Motion Sensor - RBWF-W is designed to monitor spaces, detect conditions, and control room functions based on motion. Whether used in corridors, industrial halls, offices, or residential areas, this sensor enables convenient adjustment of temperature in unused rooms and acts as a reliable motion detector.

Customer Benefits

• Efficient control of room functions based on motion detection
• Precise monitoring and detection of movements and presence
• Space-saving design with a robust plastic housing
• Easy installation on vertical or horizontal UP-Boxes
• Enhanced security and convenience in various environments
