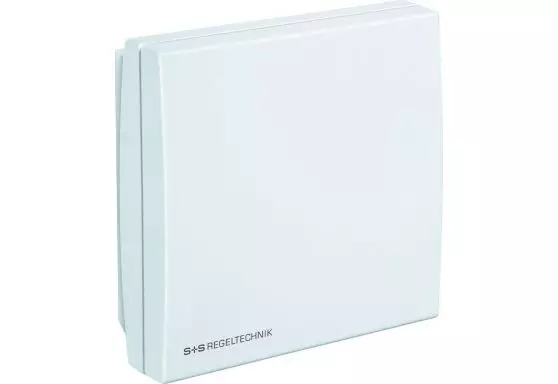

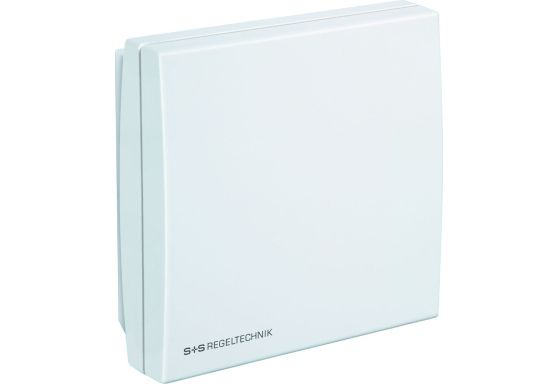

S+S Room air quality sensor / room CO2 and air quality sensor - RLQ-CO2-Modbus

S+S Room Air Quality Sensor - RLQ-CO2-Modbus Overview

Experience a new level of indoor air quality monitoring with the S+S Room Air Quality Sensor - RLQ-CO2-Modbus from {{product_attributes.hersteller}}. This innovative sensor is designed to provide comprehensive insights into the air conditions of any space, ensuring optimal comfort and well-being for occupants.

Key Features and Benefits

Enhance your indoor environment with the following features:

• Measures various parameters including humidity, temperature, VOC, particulate matter, and CO2 levels.
• Integrated Modbus interface for seamless data communication.
• Efficient monitoring and control of room climate, promoting energy savings and occupant comfort.
• Precise sensors for accurate data readings: digital humidity and temperature sensor, VOC sensor, NDIR CO2 sensor, and optical particulate sensor.
• Galvanically isolated RS485 Modbus interface for reliable connectivity.
• User-friendly display and adjustable settings for easy operation.

Technical Specifications

Gain insight into the technical aspects of the RLQ-CO2-Modbus sensor:

• Power Supply: 24 V AC/DC (±10%)
• CO2 Sensor: Optical NDIR sensor with automatic/manual calibration
• VOC Sensor: Metal oxide sensor with automatic calibration
• Bus Protocol: Modbus (RTU-Mode), adjustable address range 0-247
• Measurement Ranges: CO2 0-5000 ppm, VOC 0-100% air quality
• Housing: ABS plastic in pure white color (similar to RAL 9010)
• Dimensions: 98 x 98 x 33 mm
• Mounting: Wall mounting or on UP box, Ø 55 mm
• Protection Rating: IP 30 (according to EN 60 529)
